1992 Honda Civic Under Dash Fuse Box Diagram

1992 honda civic under dash fuse box diagram - Moon Roof Close Relay Moon Roof Open Relay MT. 2 30 A 2. In the table below youll find the fuse location and description of the fuses of the under-dash fuse box on the 16L 1996-2000 Honda DX EX and LX. Drivers side fuse box. The interior fuse box is located underneath the dashboard on the drivers side. This is a 2016 but applies to most years. Here is a picture gallery about 1991 Honda Civic Fuse Box Diagram complete with the description of the image please find the image you need. Fuse box cover in honda civic 1992 model missing need to disconnect central locking can someone help with the layout of the fusebox 1992 - 1995 Civic IN CAR Fuse Diagram Explanation Oct 22 2009 1992 Honda Civic. Daytime Running Lights Control Unit. 15A Front side lamps instrument illumination licence plate lamps multifunction control module tail lamps tail lamps relay.

Owners manualthe fuse box for my dash lights i have a 1992 honda civic but no owners manual and i need to know what the number is xxxxx the fuse box for my dash lights if any one can help me. 1999 Honda Civic Under Dash Fuse Box Diagram. More about Honda CivicCRX fuses see our website. 92-95 Civic Fuse Box Diagrams Engine Bay and Under-Da 259106 Byhazetuk - Sun Jun 12 2011 1259 am. For the fuse descriptions of the under-hood fuse box go here. Honda Civic 1992 - 1995 - fuse box diagram. 1997 Honda Civic Del Sol Fuse Box Location INTERIOR. Fuse box diagram fuse layout location and assignment of fuses and relays Honda Civic and Civic Hybrid mk8. Put up simply by admin in January 2 2013. IG Main 2 with smart entry system - without smart entry system 30 A 30 A 2.

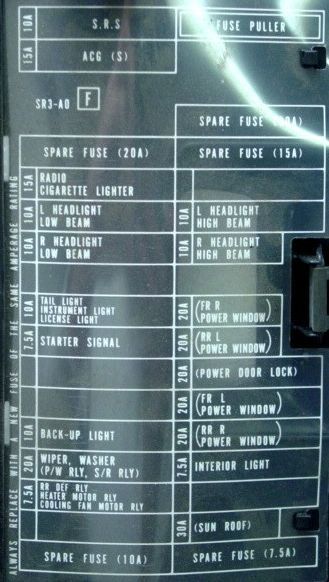

92 95 Civic Fuse Box Diagram Honda Tech Honda Forum Discussion Honda Civic Fuse Box Civic Lx

Put up simply by admin in January 2 2013. Under-Hood FuseRelay Box 1996-2000 16L Honda Civic. Interior fuse number and circuit chart.

Show Image

Civic Eg View Topic 92 95 Civic Fuse Box Diagrams Engine Bay And Under Dash รถยนต

2 30 A 2. To remove it swing the lid down and pull it out. Checking and Replacing Fuses If something electrical in your vehicle stops working the first thing you should check for is a blown fuse.

Show Image

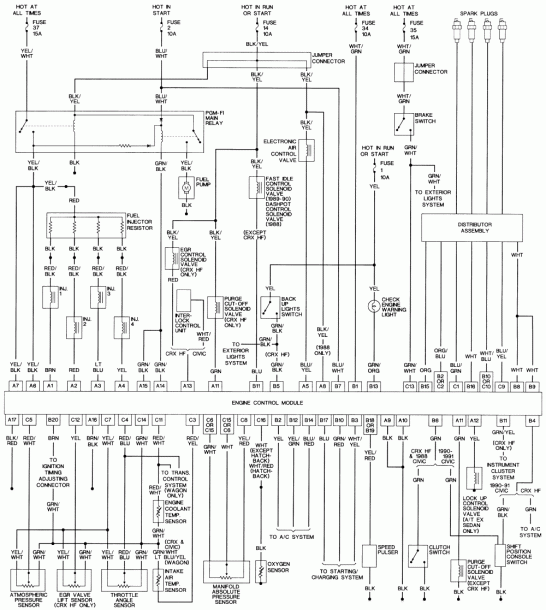

1992 Honda Civic Ex Wiring Diagram Honda Civic Engine Honda Civic Ex Honda Civic

Passenger compartment Honda Civic fuse box diagram passenger compartment. 1992 honda civic under dash fuse box diagram. 1992 1993 1994 1995.

Show Image

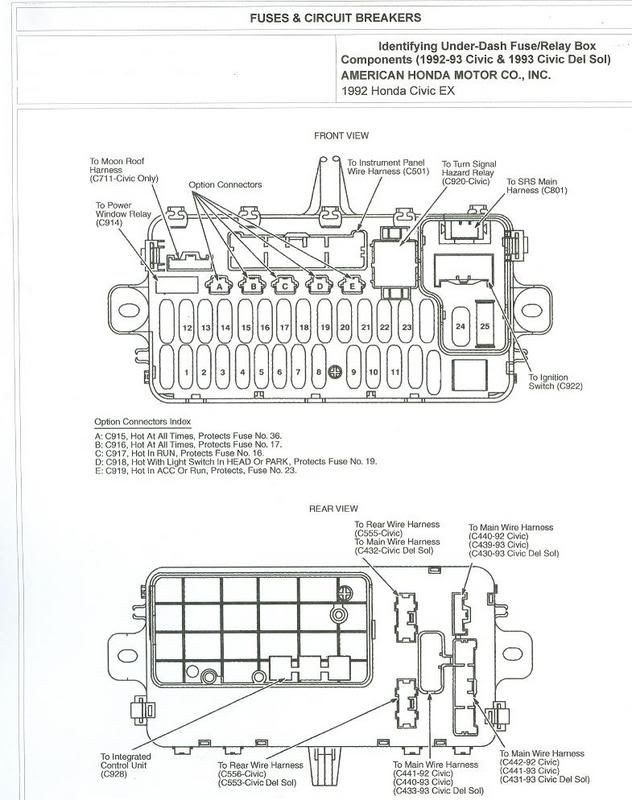

Civic Eg View Topic 92 95 Civic Fuse Box Diagrams Engine Bay And Under Dash Civic Eg Electrical Fuse Honda Civic Ex

The wiring diagram can be found at most auto-parts stores. Drivers side fuse box. FAFDFGFKFN 2006 2007 2008 2009 2010 2011.

Show Image

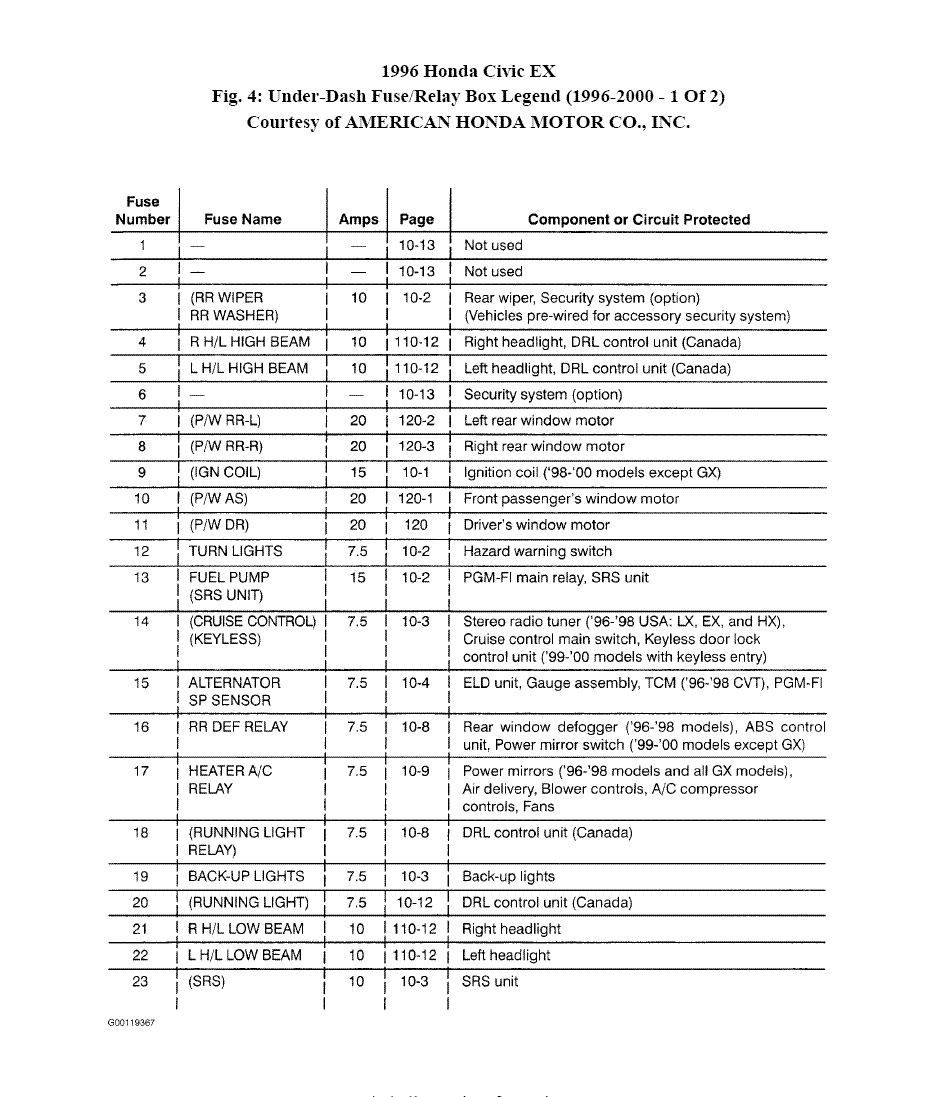

Civic Fuse Box Civic Fuse Box Honda Civic Engine

Honda Civic 1992 1995 fuse box diagram. Fuse box diagram fuse layout location and assignment of fuses and relays Honda Civic and Civic Hybrid mk8. Moon Roof Close Relay Moon Roof Open Relay MT.

Show Image

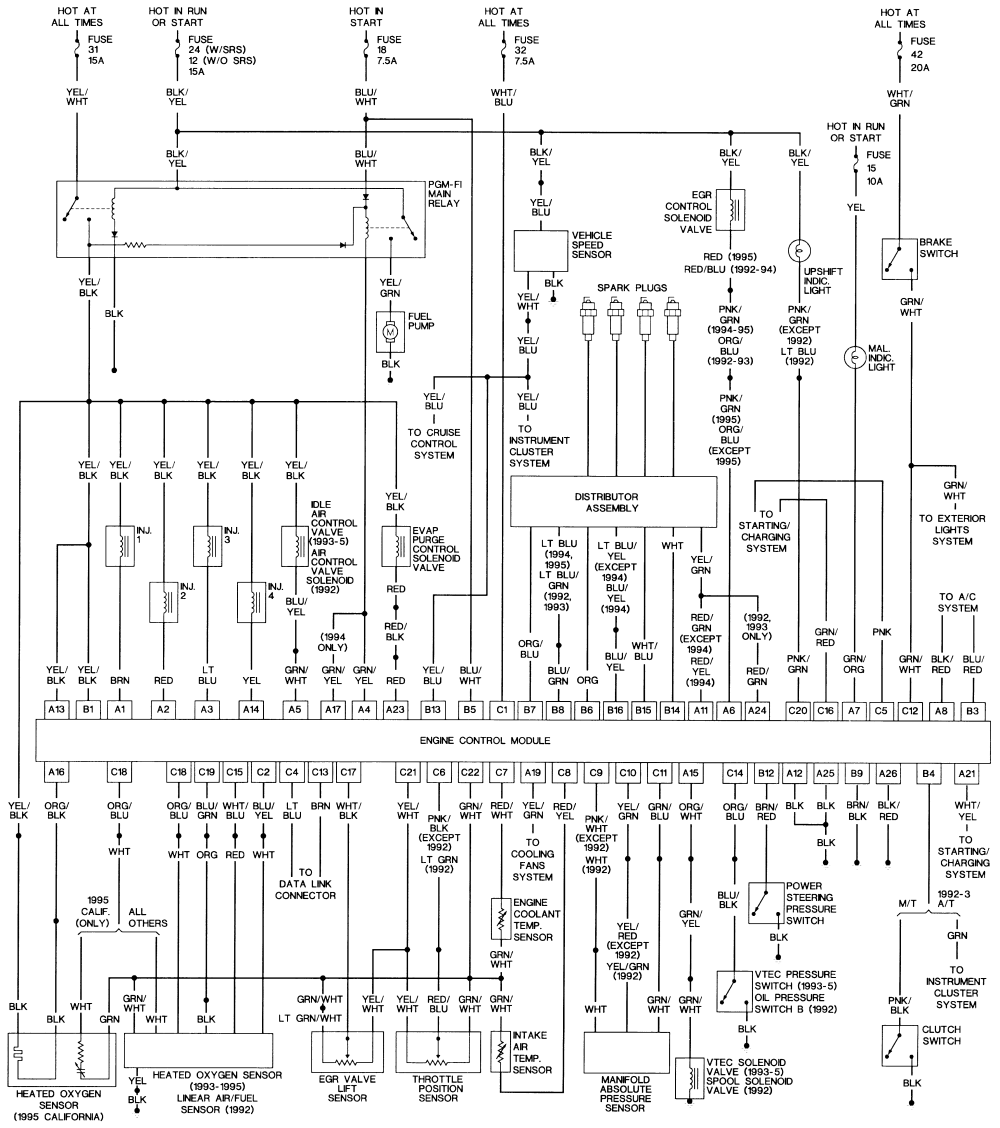

Honda Civic Wiring Harness Diagram

Passenger compartment Honda Civic fuse box diagram passenger compartment. The under-hood fuse box is located on the passengers side next to the battery. You should find the label mark wiper remove the fuse and make sure to replace it with.

Show Image

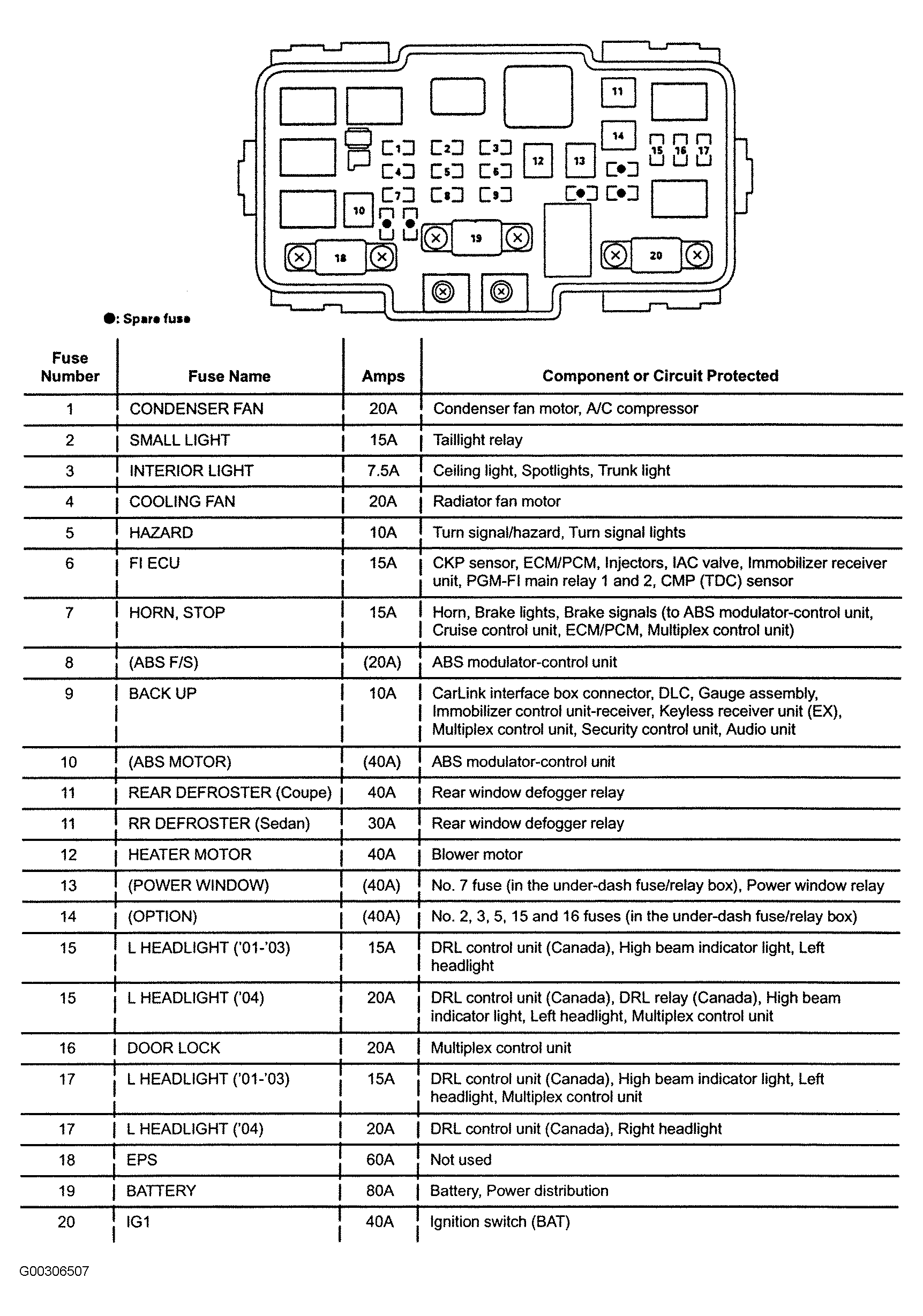

Honda Main Relay Wiring Diagram Http Bookingritzcarlton Info Honda Main Relay Wiring Diagram Honda Civic Engine Honda Civic Honda Accord

1992 Honda Civic Fuse Box Written By admin Sunday March 24 2019 Edit. FAFDFGFKFN 2006 2007 2008 2009 2010 2011. 1997 Honda Civic Del Sol Fuse Box Location INTERIOR.

Show Image

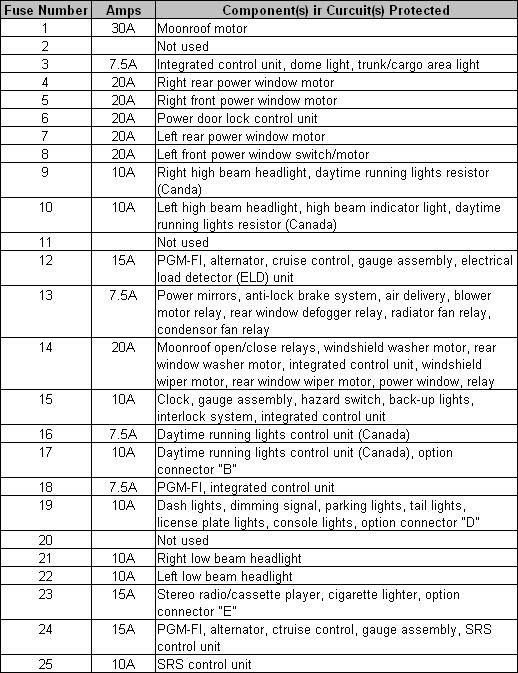

Desde Hace Tiempo Tengo Los Diagramas De Los Fusibles Para Honda Civic Del Modelo 92 Hasta El 2000 Y Quiero Compartirlo Con Honda Civic Honda Civic Ex Civic Ex

The interior fuse box is located underneath the dashboard on the drivers side. Put up simply by admin in January 2 2013. 3 4 - with smart entry system 4.

Show Image

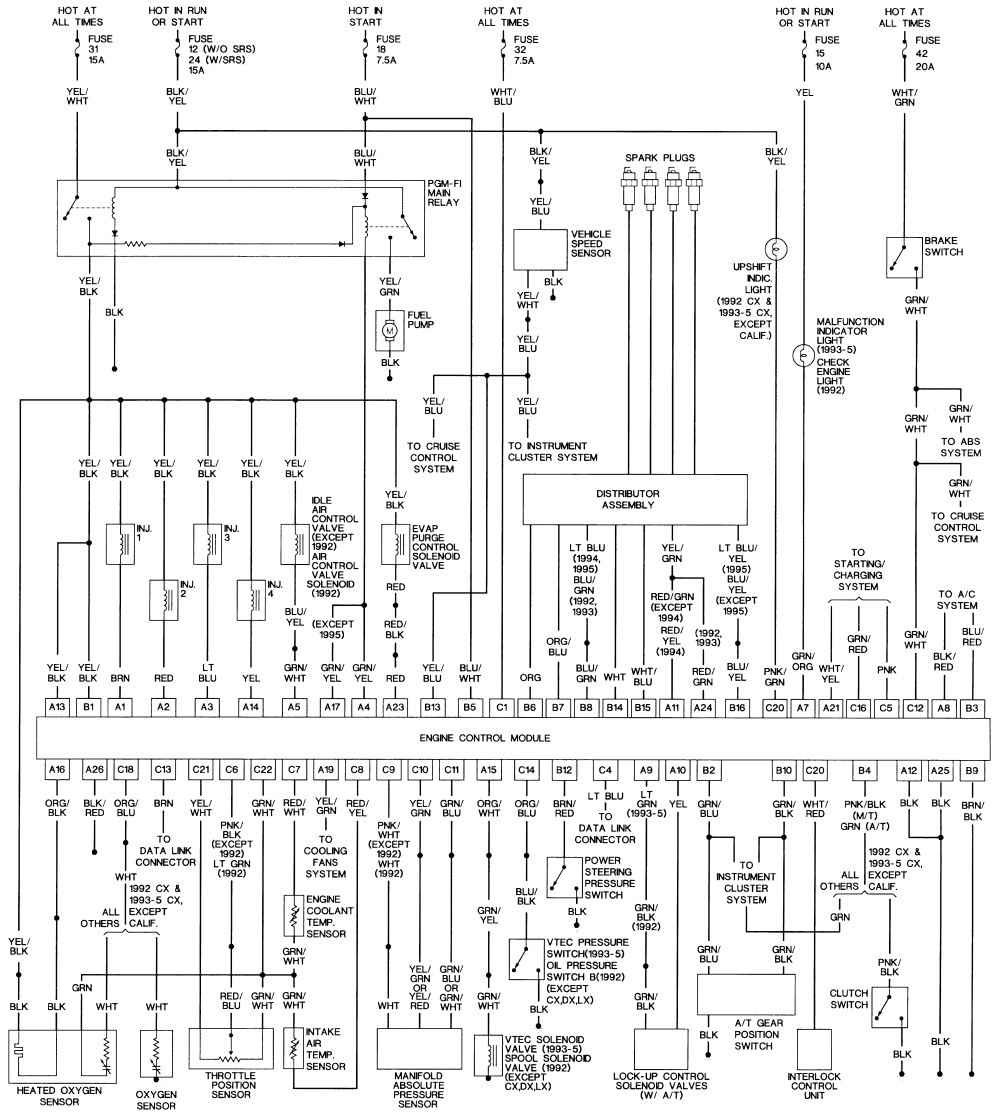

Repair Guides Wiring Diagrams Autozone Com With Honda Civic 2000 Diagram In 2000 Honda Civic Wiring Diagram Honda Civic Engine Honda Civic 2000 Honda Civic

Picture of 9091 civic sedan LX fuse box diagram under dash on LEFT 9091 CRX si fuse box diagram under dash on RIGHT. 2 30 A 2. 1993 1994 1995 1996 1997 Honda Civic Del Sol Fuse.

Show Image

10 1991 Honda Civic Electrical Wiring Diagram Wiring Diagram Wiringg Net Honda Civic Honda Civic Engine Honda Civic Vtec

This is a 2016 but applies to most years. 1997 Honda Civic Del Sol Fuse Box Location INTERIOR. These fuserelay diagrams are for a 1992 Honda Civic Del Sol.

Show Image

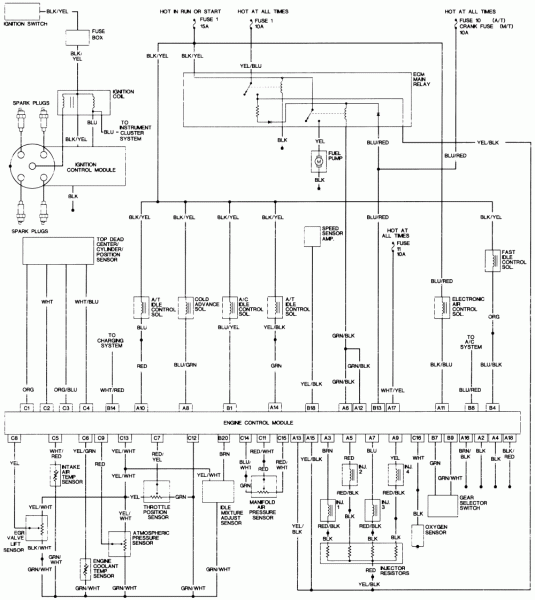

1992 Honda Accord Wiring Diagram

2 30 A 2. IG Main 2 with smart entry system - without smart entry system 30 A 30 A 2. - Tue Oct 19 2010 1220 pm 218945 thank you very much for your post it is very useful i just printed diagram under the hood Re.

Show Image

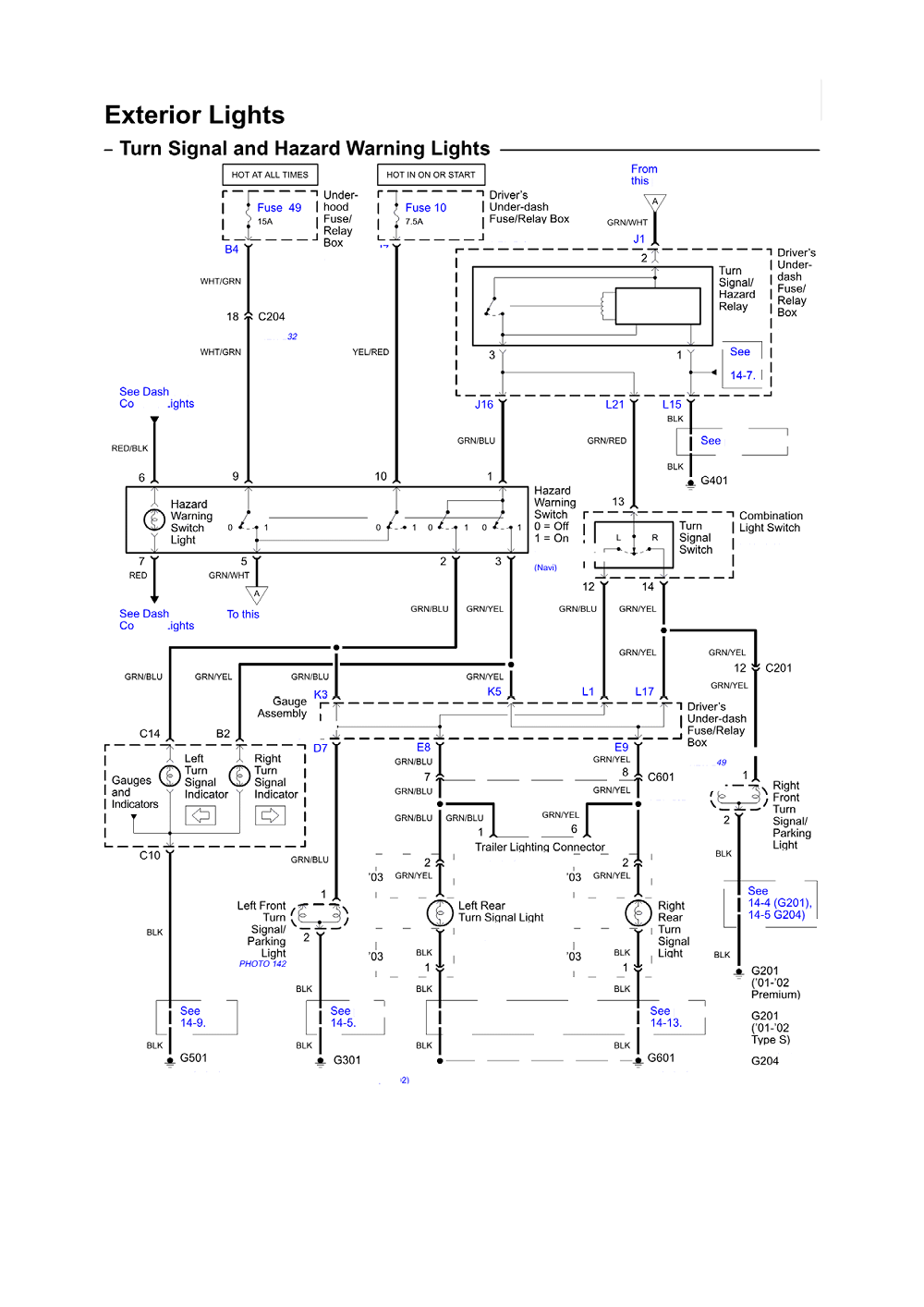

Repair Guides Wiring Diagrams Wiring Diagrams 5 Of 103 Repair Guide Electrical Circuit Diagram Electronic Circuit Design

Interior fuse number and circuit chart. Drivers side fuse box. Heated rear window relay.

Show Image

Here is a picture gallery about 1991 Honda Civic Fuse Box Diagram complete with the description of the image please find the image you need. 1999 Honda Civic Under Dash Fuse Box Diagram. Passenger compartment fuse box. Please comment below if you have any questions and thanks for watching. Heated rear window relay. These fuserelay diagrams are for a 1992 Honda Civic Del Sol. IG Main 2 with smart entry system - without smart entry system 30 A 30 A 2. Passenger compartment Honda Civic fuse box diagram passenger compartment. 15A Front side lamps instrument illumination licence plate lamps multifunction control module tail lamps tail lamps relay. The lid is clipped in.
